Centre Of Pressure Apparatus

We are the leading manufacturer and supplier of Centre Of Pressure Apparatus. Now accepting bulk orders for government tenders in every major country around the globe.

Centre Of Pressure Apparatus

Description of Centre Of Pressure Apparatus:

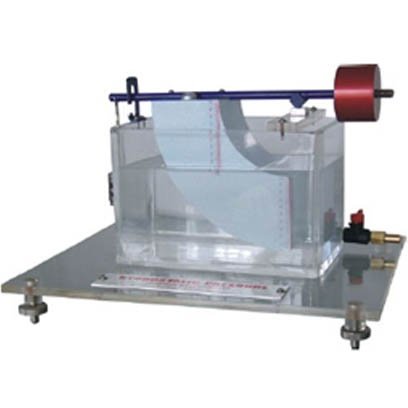

The water is contained in a plexiglass quadrant whose geometrical curved side axes coincide with a measuring beam. The moment is determined by adding or removing weights to the arm. The head of water is read directly on the transparent scale to within 2 mm.

Teaching objectives

Measurements of the centre of pressure of a vertical plane surface at different depths.
Study of the general case of a plane surface inclined at different angles, and at different depths.

Technical specifications

Quadrant: inner radius: 100 mm – outer radius: 200 mm – width: 75 mm.
One face graduated between 0 and 30°.
Fixed scale.
Indicates horizontal and vertical beam position.
Scale graduated to 200 mm below, and to 40 mm above the horizontal axis in intervals of 2 mm.
Balance arm radius: 203 mm.
The unit is supplied complete with base, weight carriers and one set of weights, and with a technical bulletin providing typical test results.
