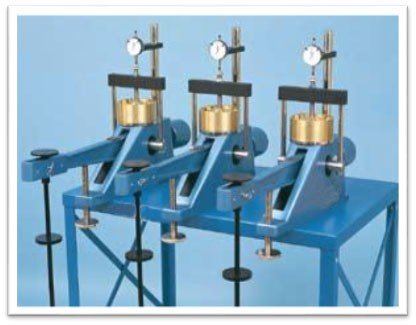

Consolidation apparatus (set of 3 mounted frames on a metallic table)

We are the leading manufacturer and supplier of Consolidation apparatus (set of 3 mounted frames on a metallic table). Now accepting bulk orders for government tenders in every major country around the globe.

Consolidation apparatus (set of 3 mounted frames on a metallic table)

Specification:-

The oedometer accepts cells up to 100 cm2
The load bridge group is supported in high accuracy self-aligning seat balls.
The beam provides three loading ratio: 9:1 10:1 11:1 and the beam assembly is fitted with an adjustable counterbalance weight.
Supplied complete with rod holding the weights and coupling block holding the dial gauge or transducer.
Rigidly manufactured from aluminium alloy
Maximum load: 170 kg of slotted weights, corresponding to 1870 Kg using the beam ratio 11:1
Front loading oedometer
DIAL GAUGE 12 mm travel x 0,002 mm subdiv.
DIAL GAUGE 10 mm travel x 0,01 mm subd. For vertical displacements.
Accessories
