Flow Visualisation Wind Tunnel

We are the leading manufacturer and supplier of Flow Visualisation Wind Tunnel. Now accepting bulk orders for government tenders in every major country around the globe.

Flow Visualisation Wind Tunnel

Teaching objectives of Flow Visualisation Wind Tunnel

Versatile for class demonstrations student experiments and research projects.
Provides a steady non-turbulent flow.
Study air flow around various shapes using smoke traces.

Technical specifications

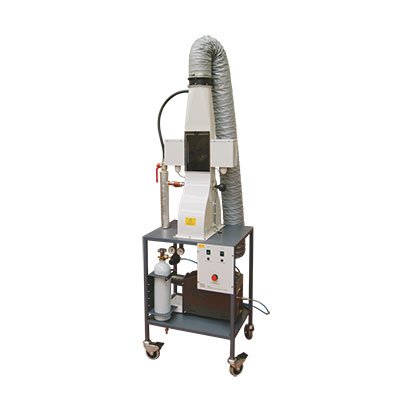

This is a combined wind tunnel and smoke generator powered by a synchronous a.c. motor driving a centrifugal blower and capable of producing wind speeds of 10 m/s in the test section.
Low turbulence air flow is achieved by the use of 3 gauze screens, a fine honeycomb and a 9:1 contraction.
The test section is 25mm x 250mm x 250mm and has a viewing area that can be illuminated by an integral strip light.
Models are mounted in the viewing area on a rotatable support.
Provision is made for a smoke rake immediately before the contraction. Smoke is produced by the atomisation of a heated, medicinal quality, white oil in an air stream.
The resulting vapour is non-hazardous and gives a highly visible smoke ideal for photography. A basic set of models is provided.
A technical manual including product description installation operation and maintenance manual.
