Methods Of Flow Measurement

We are the leading manufacturer and supplier of Methods Of Flow Measurement. Now accepting bulk orders for government tenders in every major country around the globe.

Methods Of Flow Measurement

Methods Of Flow Measurement- It is the quantification of bulk fluid movement. To measure the flow you have to measure the velocity of fluid over a known area. Gas and Liquid flow is measured in volumetric or mass flow rates.

Specification:

Net dimensions: 900 mm x 380 mm x 900 mm
Packed dimensions and weight: 0.31 m3 and 19 kg Orifice plate:
20 mm diameter with corner tapings, manufactured to

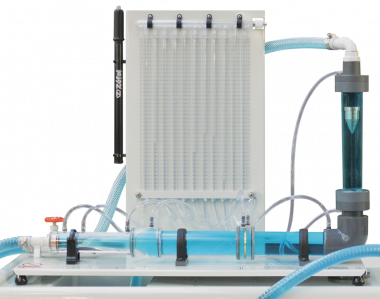

The equipment consists of a horizontal pipe including a gate valve, Venturi meter, orifice plate and pressure tapings. An elbow connects the pipe to a rotameter gape-type flow meter) with further pressure tapings. All pressure tapings connect to manometers held on avertical panel behind the pipe work. The manometers measure and clearly show pressure distribution against a calibrated scale.

Technical Data:
