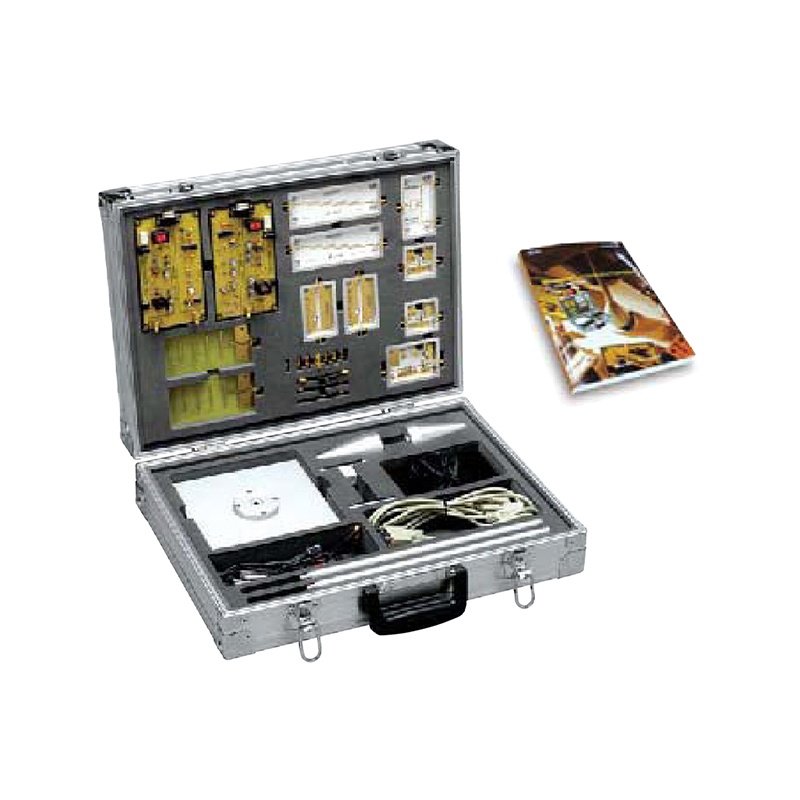

Features :Microwave Communication Trainer helps the students to train themselves about experiment in microwave  components design and manufacturing & measurement applying  microstrip line theory and microwave device design theory.
For these experiment, standard devices and others with software program are supplied
  Functions :Communication using the Microwave system
   Training Contents :
  General Specifications :
Module Specifications :
Base band transmitter :
Frequency band : 2.4 ~ 2.5 GHz
Gain : 26 dB
Noise figure : 2.5 dB
Input p1 dB : -25dBm
Power divider :
 Type : 2 way, Wilkinson
Frequency band : 2.4 ~ 2.5 GHz
Return loss : 14 dB
Insertion loss : 0.5 dB
 Band pass filter (2.4 GHz) :
Type : Edge-coupled
Center frequency : 2.4 GHz
Return loss : 10 dB
Insertion loss : 7.0 dB
Band pass filter (2.5 GHz) :
Type : Edge-coupled
Center frequency : 2.5 GHz
Return loss : 10 dB
Insertion loss : 7.0 dB
R F amplifier :
Frequency band : 2.4 ~ 2.5 GHz
Gain : 15 dB
Input : -5dBm
Antenna & Receiving :
 Type : YAGI (PCB type)
Center frequency : 2.45 GHz
Gain : 9 dBi
VSWR : 1.5 : 1
Components Device :
 FSK Modulator : 1 ea
FSK Demodulator : 1 ea
R F Â Amplifier : 2 ea
Detector : 2 ea
Band Pass Filter 2.4 GHz : 1 ea
Band Pass Filter 2.5 GHz : 1 ea
Power Divider : 1 ea
Low Noise Amplifier : 1 ea
YAGI antenna : 2 ea
DC Power Adaptor (1.2V / 1.5A) : 2 ea
DC Power Cable : 2 ea
RS Â 232C Â Cable : 2 ea
R F Cable : 3 ea
Carrying Bag : 1 ea
Antenna Cable : 2 ea
Antenna Supporter : 2 set
SMA Â Adaptor : 6 ea
50 Ohm Terminator : 1 ea
Software program : 1 ea
Answer sheet in CD : 1 ea
Program CD : 1 ea
