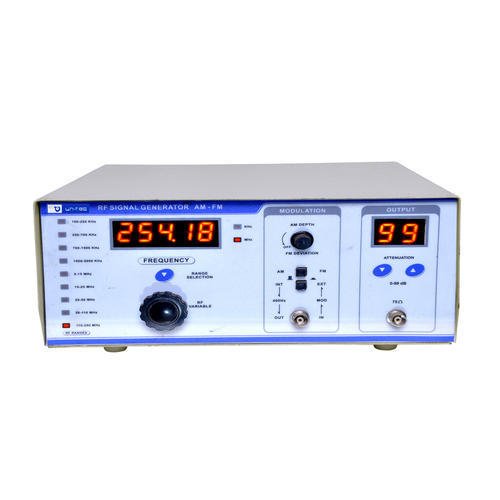

Home / R F Generator
Frequency : 100KHz ~ 150MHz (Harmonic 450MHz)
INT & EXT Modulation : AM, FM
Internal Modulation : 1 KHz audio signal
External Modulation : Input resistance less than 600Ω, Input amplitude less than 2.5V
Output amplitude : 0 ~ 50mVrms, attenuation : 20dB
Frequency : 1KHz ±10%
Distortion : 1%
Output amplitude : Micro volt to 1Vrms
Frequency : 88 ~ 108 MHz
External modulation : Input resistance less than 600Ω, Input amplitude less than 15mV
Frequency range : 10Hz ~ 100Mhz (EXT L);Â 100MHz ~ 1.3GHz (EXT H)
Sensitivity : ≤100mVrms
Max. Input Voltage : 3Vrms
Accuracy : ±(0.005%Rdg + 1 digit)
Input Impedance : 1MΩ(EXT L) 50Ω (EXT H)
