Refrigeration Cycle Demonstration Equipment

We are the leading manufacturer and supplier of Refrigeration Cycle Demonstration Equipment. Now accepting bulk orders for government tenders in every major country around the globe.

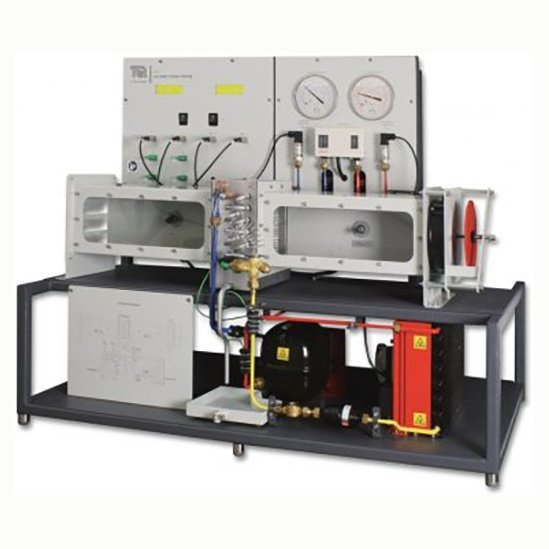

Refrigeration Cycle Demonstration Equipment

Teaching Objectives of

Refrigeration Cycle Demonstration Equipment

Observe the evaporation and condensation of the refrigerant.
Represent and understand the refrigeration cycle in a diagram: log p,h.

Energy Balances

Determination of the coefficient of performance
Oil return in a submerged evaporator

Technical specifications

An evaporator in which the coolant is vaporized and removes a certain quantity of heat from the water circulating in the copper tube coil.
A hermetic compressor.
A condenser.
A pressure relief valve that allows the passage of coolant, liquid from the condenser, towards the evaporator by reducing pressure.
A porthole window placed between the pressure relief valve and the evaporator allows observation of steam formation during the period of rest.
