Specification:-

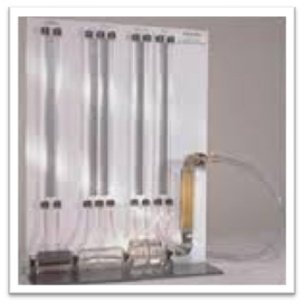

Water enters the apparatus through the lower left-hand end and flows horizontally through a sudden enlargement into a transparent venturi meter, and followed by an orifice plate. A 90 degree elbow changes the flow direction to vertical and connects to a variable area meter, a second bend passes the flow into a discharge pipe which incorperates an atmospheric break.
A static head at various points in the flow path may be measured on a manometer panel included with the experment. The water flow through the apparatus is controlled by the delivery valve of the Hydraulics Bench and the flow rate may be confirmed by using the volumetric measuring tank of the Hydraulics Bench.
Experiments
Study of Bernoulli’s equation, flow measurement and losses, including:
Essential Base Unit
Water supply:
