Home / Dead Weight Pressure Gauge Tester
Experimentation:
To calibrate a given pressure gauge.
Utilities Required :
Space 0.5 m x 0.5 m at working height.
SAE 40 20W40 : 0.5 Ltr.
Table for setup support.
Description:

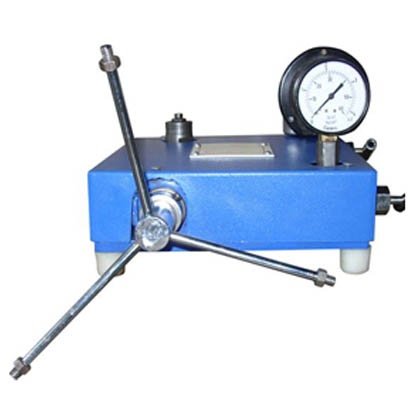

The present set-up is designed to calibrate and check the given pressure gauge (Bourdon Type). This unit consists of a precision ground plunger, which develops the required pressure by loading of weights. This pressure is transmitted to the pressure gauge by oil.
Precision ground plunger to develop the required pressure.
Valves Arrangement to fill oil.
Pressure Gauge (Bourdon Type) of 7 kg/cm2
Weight set for the pressure of 0.5 to 7kg/cm2
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
